Metal Adjustable Racking Middle-duty Warehouse Racking for Sale

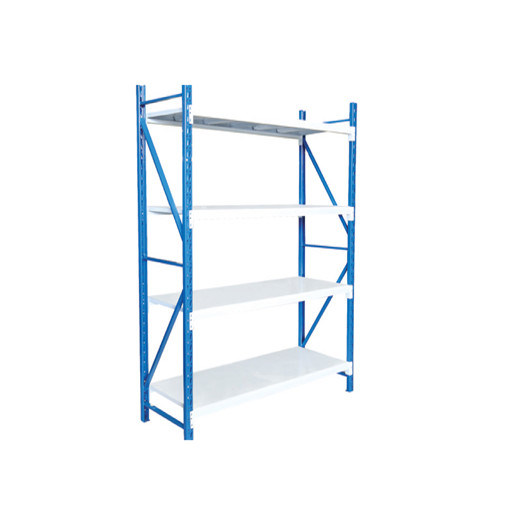

Middle-duty Warehouse racking
Medium-duty shelving belongs to shelves, it's distinguished and named according to the loading capacity, between light and heavy racking. Generally could load 250-1000kg per level.
1) This shelf is made up of upright, beam, bracing and layer panels ect.
2) The shelves can easily be set to any height individually, so as to satisfy the operating requirements for different sizes of goods.
3) This type of shelf has good loading ability and can be assembled and disassembled easily.
4) The shelf panels have underside reinforced steel hat rails, so have good loading capacity.
5) The horizontal beams do not require bolts as safety locking pins are included.
6) Apply to handle the medium goods by manpower.
7) Low cost, high safety and smooth surface.
| Product name |
Metal Adjustable Racking Middle-duty Warehouse Racking for Sale
|
| Features |
Material: Cold-rolled Steel
Surface treatment: Electrastic Spray
Size: Customized
Color: Optional
OEM/ ODM: Accepted
Feature: Corrosion Protection
|
| Specification |
This rack can be safe to keep goods.
The space and load capacity for each tier are more large than common commercial shelves.
Different thickness,size,layers,and colors are available for you to choose.
|
| Others |
Minimum order quantity: 50 sets
Supply ability:5000 pieces per month
Payment terms: 30% deposit upon signing the contract,the balance will be cleared by T/T before delivery.
Delivery Terms: Upon factory
Delivery Time: 10-15 workday upon receipt of the deposit |
| Product name |
Warehouse pallet storage rack |
| Brand |
WUHAO |
| Advantage |
1) Color and size can be adjusted according to your requirements;
2) Ideal for large quantity and bulk operation, and pallet racks;
3) Surface treatment: Epoxy powder coated and color optional;
4) Easy to install and dismantle;
5) Available with light, medium, and heavy carrying capacities;
6) High quality and good appearance;
7) The most commonly used in all storage systems for palletized goods;
8) Compatible with most types of handling equipment, To achieve a variety of size and weight of the tray quick access;
9) each layer carrying up to 500-5000kg;
10) The reliable and efficient service before and after deal.
|
| Material quality |
High quality Cold-rolled Steel |
| Surface treatment |
Epoxy powder coated and color optional |
| Structural features /Specification |
1) This kind of warehouse rack made of high-grade cold-rolled steel, with strong surface treatment, strong enough in construction.
2) The rack with long life-span is anti-corrosion, so it is widely used in warehouse of various countries.
3) The layer board can be metal plain panel or wire grid panel.
| model |
light storage rack ( mm) |
middle storage rack |
heavy storage rack |
heavy storage rack |
heavy storage rack |
| specification |
1500*500*2000 |
2000*600*2000 |
2000*800*3000 |
2000*800*3000 |
2000*800*3000 |
| size of upright |
30*50 |
30*80 |
60*80 |
70*90 |
70*90 |
| size of bunton |
30*50 |
40*80 |
50*80 |
50*110 |
50*120 |
| thickness(upright) |
1.0 |
1.2 |
2.0 |
2.5 |
2.5 |
| thickness(board) |
0.5 |
0.5 |
1.0 |
1.0 |
without |
| Thickness(bunton) |
1.0 |
1.2 |
2.0 |
2.5 |
2.5 |
| capacity( per layer) |
150KG |
300KG |
1000KG |
1500KG |
2000KG |
| layer |
4 |
4 |
3 |
3 |
3 |
|
| Packing |
Knockdown package. The beams, shelves and upright posts are separate packed by cartons. Safe for long-distance transportation. Container load:10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container |
| MOQ |
10sets |
| Delivery time |
Within 25 workday upon receipt of the deposit |
| Payment term |
30% deposit, the balance against copy of B/L |
| Loading port |
Nanjing, China |
| Supply Ability |
8000 pieces per month. |
| Quotation |
Please offer us the following information in details, so we can give you the exact quotation:
1) Size of your warehouse;
2) Full details of size’s*D*H;
3) How many bays you want;
4) How many layers you want;
5) Loading capacity of each layers;
6) RAL color you require;
7) Drawing (if available).
|
What could you get from us?
We are the profesional warehouse using products, something like wire container, metal rack, shelf, plastic pallet, plastic box, you can choose all warehouse logistics goods in one stop here.
1. Good quality, reasonable price:
a. We have our own factory, so we can supply you the factory price.
b. Quality control system to guarantee the best quality.
c. Third party inspection available upon requirement.
2. Experienced Service:
a. Professional solution
With over 10 years producing experience, we can offer you our best solution, and help you to save cost.
b. Design
We can translate your original drawing, offer best suggestion on design, or give you our unique design
according to your requirements.
c. Custom made accepted
