| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhao |
| Model Number: | C2-1000 |
| Minimum Order Quantity: | 50 units |
| Price: | Negotiatable |
| Packaging Details: | (1) Stretch films and plastic banding wrapped (2) Packaged as per customer's requirements |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 40000 per month |
| Model No.: | C2-1000 | External Size: | 1200*1000*890mm |
|---|---|---|---|
| Internal Size: | 950*750*700mm | Wire Gauge: | 5.6mm |
| Mesh Size: | 50*100mm | Surface Treatment: | Zinc Plated/ Hot Dip Galvanized/ Powder Coating |
| Option: | Castors, Lid, Pp Sheet And So On | Application: | Material Handling, Transport, Storage, Warehouse And So On |
| High Light: | mesh pallet cages,wire mesh storage boxes |
||

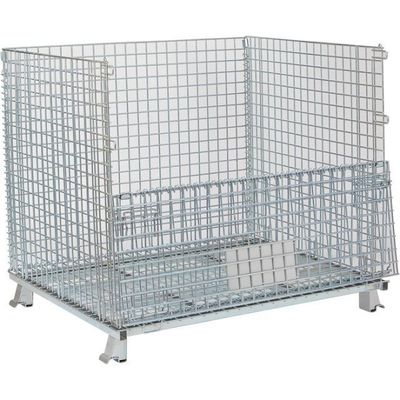

Storage Container for Warehouse Stackable Wire Container Foldable
Wire mesh container
High-visibility parts storage for manufacturing and warehousing. Features reinforced under carriage and support legs, fully galvanized finish and a collapsible, stackable design for efficient storage. Folds flat for space-saving storage, with front drop-gate for easy access. Dimensions available, Material Wire mesh, Foldable Yes, Flared legs allow for easy 4-high stacking.
• 1200L x 1000W x 890H mm/ 1000L x 800W x 840H mm/ 800L x 600W x 640H mm
• Rugged 2-gauge 2in x 2in wire mesh with reinforced understructure
• Many capacity available
• Flared legs allow for easy 4-high stacking
Castors options
Roller bearing swivel casters are made of high-impact polypropylene, with 2 locking casters.
Two swivel locking poly casters and two rigid poly casters
Other options
It can work with pp sheet, wood pallet, plastic pallet, a top/cover, and casters and so on.
Specification:
| Product Description | Brand | WUHAO |
| Type | wire container, wire mesh container | |
| Product code | C2-1000 | |
| Dimension(L*W*H) | 1200x1000x890mm | |
| Mesh size | 50x100mm | |
| Wire guage | 5.8mm | |
| Weight | 53kg | |
| Loading Capacity | 1000kg | |
| Stackability | four-layers | |
| Material | Steel wire and cold-rolled steel plate | |
| Finishing | Zinc plating, powder coat | |
| Quantity/20Gp | 144 units | |
| Quantity/40Gp | 324 units | |
| Product shelf life | up to 3 years under proper handling | |
| MOQ | no | |
| Application | warehouse, supermarket, logistics, etc. |
Regular production models
|
C Series
|
|||||||||
| Item No. |
Specification |
Wire diameter | Mesh gauge | Load capacity | Self-weight | Feet height |
Load quantity |
||
| External size (L*W*H)(mm) | Internal size (L*W*H)(mm) |
(mm) |
(mm) |
(kg) |
(kg)±2% |
(mm) |
20' FT |
40 ' FT |
|
| C1-1500 |
1200*100*890 |
1150*950*750 |
5.8 | 50*50 | 1500 | 60 |
100 |
144 |
324 |
| C1-1300 | 5.6 | 50*50 | 1300 | 55 | |||||
| C2-1000 | 5.8 | 50*100 | 1000 | 53 | |||||
| C2-800 | 5.6 | 50*100 | 800 | 48 | |||||
| C3-2000 | 6.3 | 50*50 | 2000 | 68 | |||||
|
(1) Customized size: the size, wire diameter, mesh gauge can be customized as your design. (2) Surface treatment: galvanized or powder coating. |
|||||||||
Features:
• Collapses in seconds without the need of any tools
• Drop down gate with self locking latches provides access even when stacked.
• Zinc plated finish
• Easy to operate or fold: one or two person’s operation
• Ergonomic: Easy access to the products
• Good product visibility
• No detachable parts or no loose parts
